Instagram Trigger

The Instagram Trigger allows your AI agent to respond automatically when users send messages on Instagram Direct Messages.

It enables you to build conversational agents for customer support, FAQs, lead qualification, order tracking, and guided workflows—directly inside Instagram.

This trigger integrates with Meta's Instagram Messaging API and works entirely through secure webhooks.

Overview​

When an Instagram message is received:

  1. Meta sends the message event to your webhook
  2. The Instagram trigger activates
  3. Message context (sender, content, metadata) is created
  4. Your agent executes its instructions
  5. The agent can reply back to the same Instagram conversation

Each user's incoming message is handled independently, while still allowing you to maintain conversational continuity.

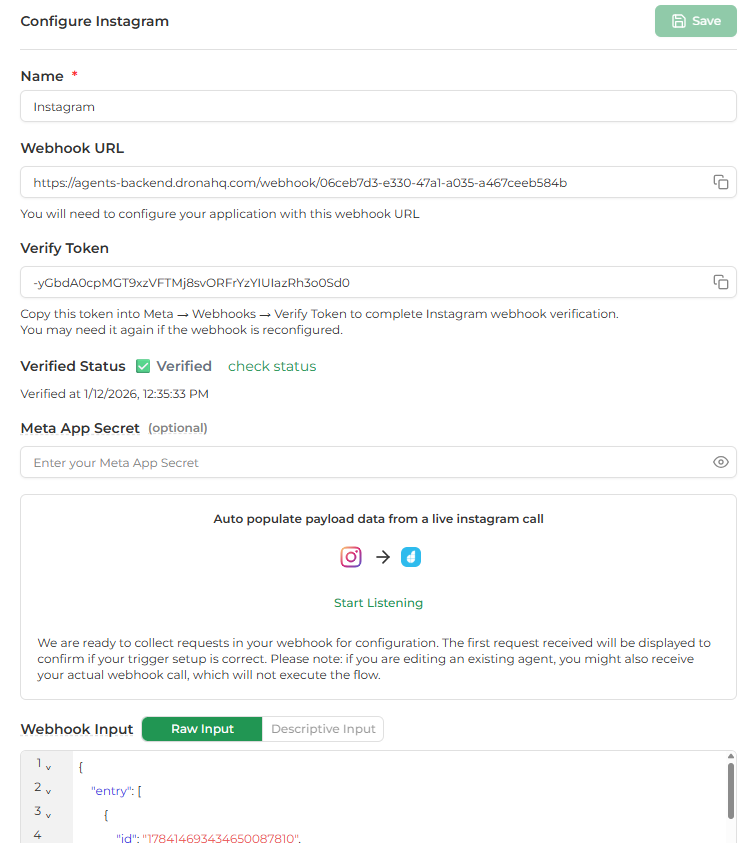

Instagram Trigger Webhook Overview
Instagram Webhook Overview

When Should I Use Instagram Trigger?​

Use this trigger when:

  • Users should interact with your agent via Instagram Direct Messages
  • Conversations happen in real time
  • Human-like responses are required
  • You want to engage with your Instagram audience directly

Common use cases

  • Customer support & helpdesk
  • FAQ automation
  • Lead qualification
  • Order updates & tracking
  • Appointment booking
  • Conversational onboarding
  • Social media engagement

Configure Instagram Trigger​

Step 1: Add Instagram Trigger​

  1. Go to DronaHQ → Agents → Triggers
  2. Click + Add Trigger
  3. Select Instagram

Step 2: Basic Configuration​

Name​

  • Provide a descriptive name
    Examples:
    • Customer Support – Instagram
    • Orders Bot – Instagram
    • Lead Gen – Instagram
  • Helps identify the trigger in logs and UI
  • Required field

Webhook URL​

Each Instagram trigger generates a unique webhook URL.

  • Copy this URL from the configuration panel
  • Go to Meta for Developers
  • Paste it into Meta → My Apps → [Select Your App] → Use cases → Instagram API → API setup with Instagram Login → Configure Webhooks

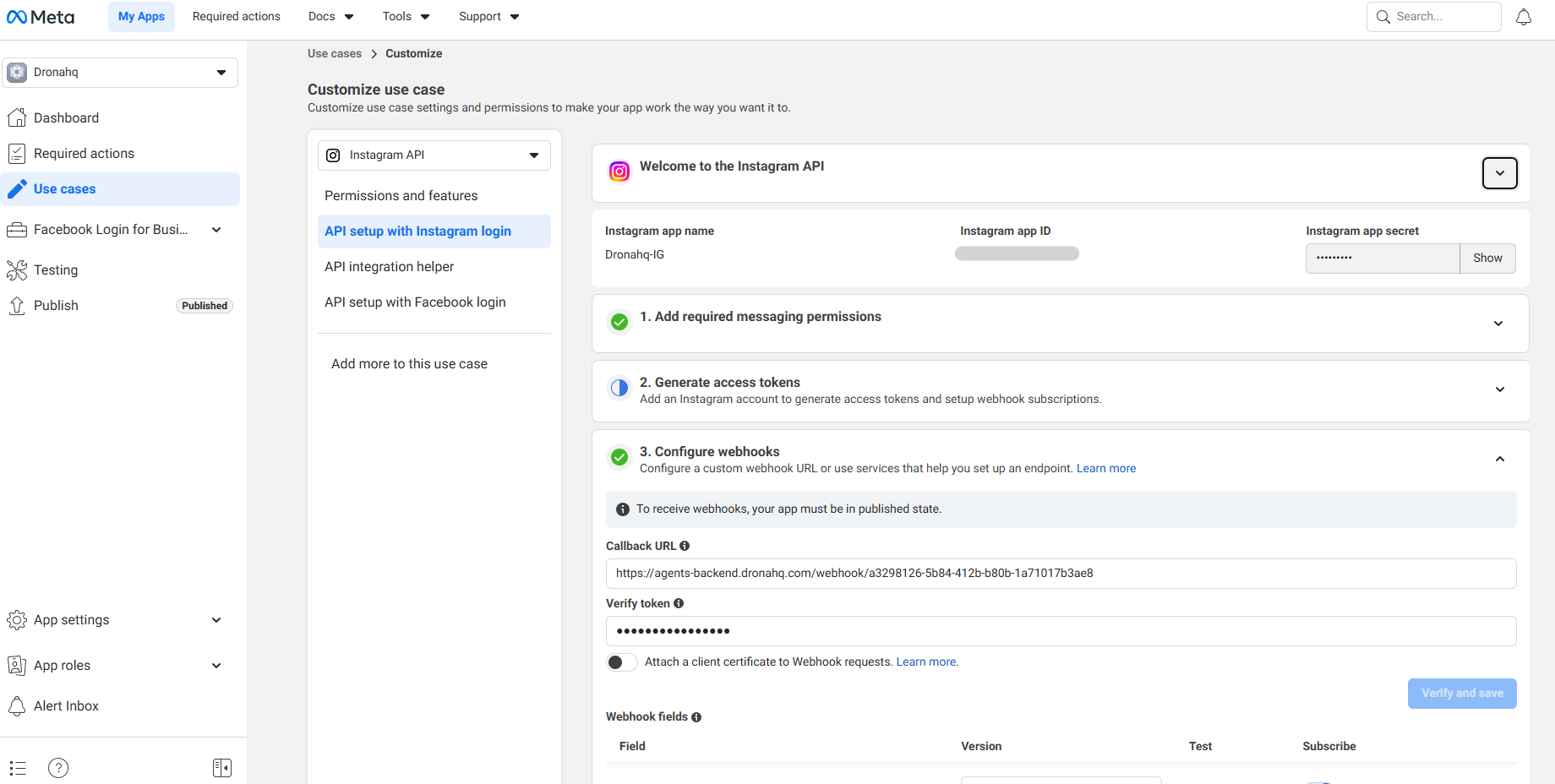

    Instagram Webhook Configuration
    Instagram Webhook Configuration
  • This is where Meta sends incoming Instagram message events
Instagram Webhook Events Subscribe
Instagram Webhook Events Subscribe
info

Your agent will only receive Instagram messages after this webhook is configured and verified in Meta.

Verify Token​

A verification token used once by Meta to confirm webhook ownership.

  • Copy the Verify Token from the trigger
  • Paste it into Meta → My Apps → [Select Your App] → Use cases → Instagram API → API setup with Instagram Login → Configure Webhooks → Verify Token
  • Required during webhook verification

Verified Status​

Shows whether Meta has successfully verified your webhook.

  • Not Verified → Webhook not connected
  • Verified → Ready to receive Instagram messages
  • Click Check status to refresh

A timestamp is shown once verification is complete.

Meta App Secret (Optional)​

Used to validate webhook signatures sent by Meta.

  • Found in Meta → My Apps → Settings → Basic → App Secret
  • Helps ensure requests truly come from Meta
  • Toggle visibility using the eye icon
Instagram Meta App Secret
Instagram Meta App Secret
tip

Highly recommended for production use to prevent spoofed webhook calls.

Step 3: Auto Populate Payload Data (Optional)​

The Auto populate payload data from a live Instagram call feature helps you inspect real message payloads.

  1. Click Start Listening
  2. Send a message to your Instagram Business account
  3. The first incoming payload is captured and displayed

This helps you:

  • Understand Instagram payload structure
  • Confirm webhook connectivity
  • Auto-fill input schemas
danger

While editing an existing agent, real messages may be captured but will not execute the agent during configuration.

Step 4: Webhook Input (Instagram Payload)​

Instagram messages follow Meta's webhook structure.

Raw Input (Example)​

{
  "entry": [
    {
      "id": "17841405309211844",
      "time": 1504902988,
      "messaging": [
        {
          "sender": {
            "id": "123456789"
          },
          "recipient": {
            "id": "17841405309211844"
          },
          "timestamp": 1504902988,
          "message": {
            "mid": "mid.$cAAE1QiBYk6pr6s_1PdB5jvfmMwca",
            "text": "Hello"
          }
        }
      ]
    }
  ],
  "object": "instagram"
}

Important Fields​

  • Sender

    • entry[0].messaging[0].sender.id → Instagram user ID
    • entry[0].id → Instagram page/business account ID

  • Message

    • entry[0].messaging[0].message.mid → Message ID (required for replies)
    • entry[0].messaging[0].message.text → Message content
    • entry[0].messaging[0].message.attachments → Media attachments (images, videos)
    • entry[0].messaging[0].timestamp → Time received

  • Metadata

    • entry[0].id → Your Instagram Business account ID
    • object → Always "instagram" for Instagram messages

Step 5: Configure Message (Agent Context)​

The Message section defines what context your agent receives.

Write Tab​

Use templates to extract relevant data.

Template Rules

  • Use {{...}} for placeholders
  • Use dot notation for nested fields
  • Array indices are supported
New Instagram message received.

From: {{entry[0].messaging[0].sender.id}}
Instagram Account ID: {{entry[0].id}}

Message:
{{entry[0].messaging[0].message.text}}

Message ID:
{{entry[0].messaging[0].message.mid}}

Full Payload Option​

{{$}}

Preview Tab​

Shows exactly how your agent will receive the formatted message.

Use this to:

  • Verify placeholders
  • Confirm message text extraction
  • Avoid runtime issues

Step 6: Save Configuration​

  1. Ensure webhook is Verified
  2. Review message template preview
  3. Click Save

Once saved, incoming Instagram messages will trigger your agent.

Accessing Instagram Data in Agent Instructions​

Common references:

  • Sender ID {{entry[0].messaging[0].sender.id}}

  • Instagram Account ID {{entry[0].id}}

  • Message Text {{entry[0].messaging[0].message.text}}

  • Message ID {{entry[0].messaging[0].message.mid}}

  • Timestamp {{entry[0].messaging[0].timestamp}}

Example Agent Instruction​

When an Instagram message is received:
- Read the user's message
- Use the Message ID to reply
- Respond politely and clearly
- Maintain conversational context
- Handle media attachments if present

Best Practices​

  • Verify webhook before production use
  • Always store and reuse Message IDs
  • Handle different message types (text, images, videos, stories)
  • Keep responses short and conversational
  • Test using real Instagram messages
  • Secure your Meta App Secret
  • Monitor webhook verification status
  • Consider Instagram's 24-hour messaging window for customer conversations

Instagram Webhook Verification (Meta)​

  1. Copy Webhook URL and Verify Token
  2. Go to Meta for Developers → Webhooks
  3. Configure Instagram webhook
  4. Subscribe to messages events
  5. Verify and save
  6. Confirm status in DronaHQ
