Audit Logging

Introduction

Audit Logs is a powerful feature within the DronaHQ platform that allows you to seamlessly integrate various loggers to capture events and activities from your modules, such as RunAPI. This feature enhances your ability to monitor, analyze, and manage logs efficiently. This documentation provides step-by-step instructions on how to enable and configure Audit Logging in your DronaHQ account.

DronaHQ Support following 2 types of Audit Logging -

1. DronaHQ Managed Audit Logging (Available only on Self-hosted version)
2. External Audit Logging

DronaHQ Managed Audit Logging

DronaHQ managed audit logging enables you to capture events and activities from your modules without any external logger setup. This can be an alternative to any external logger that one may want to set up.

info

DronaHQ Managed Audit Logging is supported only on self hosted version.

To enable this feature you need to configure this environment variable on your self-hosted environment file

DHQ_MANAGED_AUDIT_LOG_ENABLED=’true’

Once this is enabled, your audit logs will be saved in the dhq_managed_audit_log collection which will be auto-created in your configured DHQ_MONGODB_HOST server with database name DHQ_MONGODB_DATABASE. The above variables are configured while setting up self-hosted instance.

Once this is set up, go to Account Settings -> General & Security -> Audit Logging section, you will find DronaHQ managed Audit Logging is Enabled message and to View Audit logs you can click on View Audit Logs button

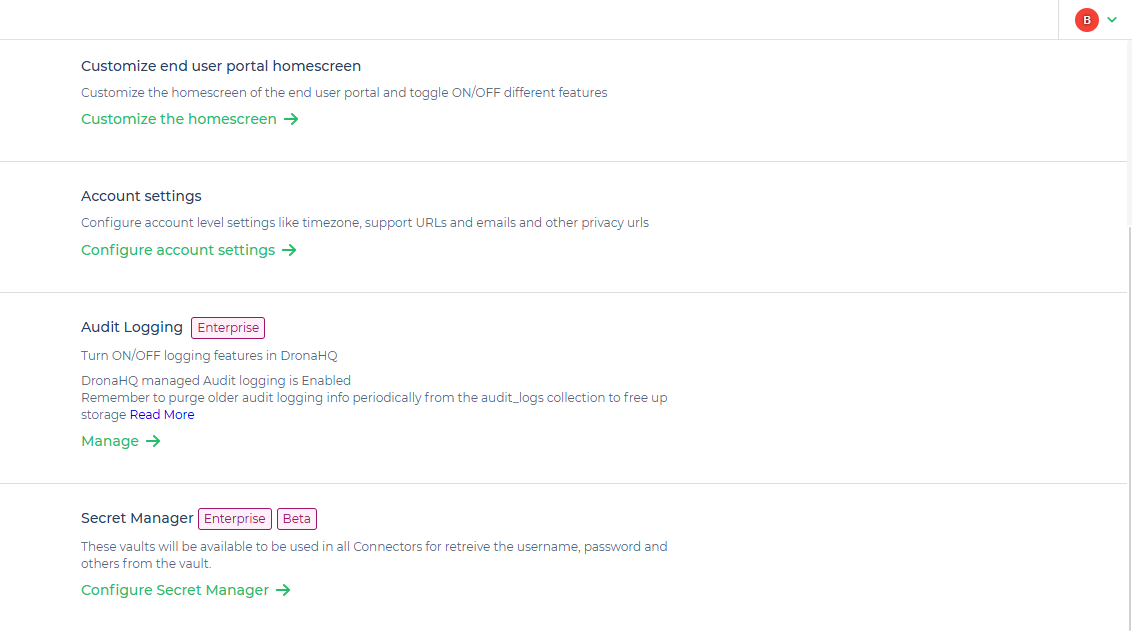

DronaHQ managed audit log setting

Easily access and manage your audit logs with advanced filtering options, including date ranges, specific events, connectors, apps, and automation filters, and search by user email. Navigate seamlessly with pagination, ensuring efficient tracking and oversight of your logs

View audit logs

External Audit Logging

To enable external Audit Logging, follow these steps:

Log in to your DronaHQ account and navigate to the "Account Settings" section > "General & Security" Under the "Audit Logger" section, you will find the option to set up Audit Logging. Click on "Setup External Logging."

Audit logger

Configuring Audit Loggers

After clicking on "Setup External Logging," you will be prompted to configure the logger. Follow these steps:

Select Logger Configuration: From the dropdown menu, select the logger you want to integrate. For example, you can choose MongoDB.

Audit logger Dropdown select

Provide Connection Details: Proceed to provide the necessary connection details for the selected logger. These details may include hostnames, ports, credentials, or any other information required to establish a connection.

Create Integration: Once you have entered the correct connection details, click on the "Create Integration" button. This action will initiate the integration process.

Logger Initialization: After successfully configuring the logger, you will receive a "Logger Initialized" message. This message indicates that the integration with the selected logger has been successfully established.

Audit Logger Setup

DronaHQ provides a feature that allows you to test custom logs, ensuring that the integration is functioning as expected. Here's how you can test custom logs:

Access Custom Log Testing: Within the Audit Logging settings, look for the "Test" button and Input will be displayed and one can enter the custom log and click on "Log" Button

Logging Custom Details: In this section, you can log specific details, such as event names, the user who is logged in, organization ID, and more. This information will be useful for monitoring and analyzing your system's activities.

By following these simple steps, you can seamlessly enable, configure, and test the Audit Logging feature in your DronaHQ account. This powerful tool allows you to efficiently manage and monitor event logs within your modules, enhancing your overall experience with the platform.

Logging Schema

Logged Key	Description
level	info/error based on response
msg	Logged Event Message
time	Timestamp
organization-id	Your Organization Id
environment	Source Environment
user-email	user's Email address
resource-id	Subcategory Id
resource-name	Subcategory Name
resource-type	Event Resource Type
resource-action	Event Resource Action
parent-id	MicroApp ID/Automation ID
parent-name	MicroApp Name/Automation Name
parent-type	microapp/automation
resource-meta	Payload with Muted Key
event-id	Event Identifier
source	Source of Logged Event
user-agent	USER-AGENT
resource-group-id	Category Id

Logging Example

For External Loggers:

{
  "level": "info",
  "msg": "DB Connector Query Execute",
  "meta":{
    "time": 1698747079624,
    "organization-id": "DRONA5_Team1809",
    "environment": "Production",
    "user-email": "test@studio.com",
    "resource-id": 20253,
    "resource-name": "getAuthor",
    "resource-type": "mysql",
    "resource-action": "runapi",
    "parent-name": "Login",
    "parent-type": "mysql",
    "resource-meta": {
      "env_id": 1,
      "env_name": "Production",
    },
    "event-id": "db_query",
    "source": "automation",
    "user-agent": "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/114.0.0.0 Safari/537.36",
    "resource-group-id": 6625,
  }
}

Columns For Database Loggers:

id	level	message	meta	timestamp

List of events logged and Availability

Events	Event ID	Self Hosted	Cloud
User Invited	user_invited	✔️	✔️
User Activated	user_activated	✔️	✔️
User Deactivated	user_deactivated	✔️	✔️
User Password Reset	user_password_reset	✔️	✔️
User Password Forgot	user_password_forgot	✔️	✔️
User Updated	user_updated	✔️	✔️
Group Created	group_created	✔️	✔️
Admin Logged In	admin_logged_in	✔️	✔️
Admin Logged Out	admin_logged_out	✔️	✔️
App Saved	app_saved	✔️	✔️
App Created	app_created	✔️	✔️
App Deleted	app_deleted	✔️	✔️
App Published	app_published	✔️	✔️
App Unpublished	app_unpublished	✔️	✔️
App Permission Updated	app_permission_updated	✔️	✔️
App Config Updated	app_config_updated	✔️	✔️
Template Created	template_created	✔️	✔️
Catalog Created	catalog_created	✔️	✔️
Connectors Added	connectors_added	✔️	✔️
Connectors Updated	connectors_updated	✔️	✔️
Connectors Deleted	connectors_deleted	✔️	✔️
Connectors API Added	connectors_api_added	✔️	✔️
Connectors API Updated	connectors_api_updated	✔️	✔️
Connectors API Deleted	connectors_api_deleted	✔️	✔️
Connectors Environment Update	connectors_env_update	✔️	✔️
Connectors Environment Delete	connectors_env_delete	✔️	✔️
Environment Added	environment_added	✔️	✔️
Environment Updated	environment_updated	✔️	✔️
Environment Deleted	environment_deleted	✔️	✔️
Db Query	db_query	✔️	✔️
API Call	api_call	✔️	✔️
User Logged In	user_logged_in	✔️	✔️
User Logged Out	user_logged_out	✔️	✔️
User Password Forgot	user_password_forgot	✔️	❌
User Password Reset Requested	user_password_reset_requested	✔️	❌
Settings Updated	settings_updated	✔️	❌
Public Access Enabled	public_access_enabled	✔️	✔️
Public Access Disabled	public_access_disabled	✔️	✔️
Organizational Access Enabled	organizational_access_enabled	✔️	✔️
Organizational Access Disabled	organizational_access_disabled	✔️	✔️
Stripe Keys Saved	stripe_keys_saved	✔️	✔️
Automation Deleted	automation_deleted	✔️	✔️
Automation Enabled	automation_enabled	✔️	✔️
Automation Disabled	automation_disabled	✔️	✔️
Automation Rollback	automation_rollback	✔️	✔️
Automation Publish	automation_publish	✔️	✔️
Automation Updated	automation_updated	✔️	✔️
Automation Created	automation_created	✔️	✔️
Openai Account Added	openai_account_added	✔️	✔️
Openai Account Updated	openai_account_updated	✔️	✔️
Openai Account Deleted	openai_account_deleted	✔️	✔️
Openai Account Set Default	openai_account_enabled	✔️	✔️
Email Config Created	email_config_created	✔️	✔️
Email Config Saved	email_config_saved	✔️	✔️
Email Config Deleted	email_config_deleted	✔️	✔️
Email Template Saved	email_template_saved	✔️	✔️
SSH Key Added	ssh_key_added	✔️	✔️
SSH Key Updated	ssh_key_updated	✔️	✔️
SSH Key Deleted	ssh_key_deleted	✔️	✔️
SSO Enabled	sso_enabled	✔️	✔️
SSO Disabled	sso_disabled	✔️	✔️
SCIM User Added	scim_user_added	✔️	✔️
SCIM User Deactivated	scim_user_deactivated	✔️	❌
SCIM User Updated	scim_user_updated	✔️	❌
SCIM Group Added	scim_group_added	✔️	❌
SCIM Group Updated	scim_group_updated	✔️	❌
User Bulk Upload	user_bulk_upload	✔️	✔️
User Bulk Deactivated	user_bulk_deactivate	✔️	✔️
User Bulk Activate	user_bulk_activate	✔️	✔️
User Group Bulk Mapping	manage_user_groups_bulk	✔️	✔️
New Theme Created	new_theme_created	❌	✔️
Logger Deleted	logger_deleted	✔️	✔️

---

Note: Ensure that you provide accurate connection details for the Audit logger to ensure smooth integration.

Purging older audit logs data to free up storage

If your self-hosted MongoDB database's "dhq_managed_audit_log collection" starts accumulating too much data, it's a good practice to ease the storage burden by taking backups and removing older audit logs, generally those older than 2-3 months.
