JSON Schema Form Control

The JSON Schema Form (JSF) control is a composite form control that generates dynamic forms based on JSON schemas. It does not maintain state and utilizes React components to render and manage forms efficiently. This control is useful for applications where dynamic form generation is required based on predefined JSON structures.

DronaHQ's JSON Schema Form leverages the react-jsonschema-form library, allowing users to specify input fields and their display properties using JSON and UI schemas.

Additionally, this component supports pre-filling nested input fields with default values

JSON Schema Form Control

Content

The JSON Schema Form control consists of the following components:

• JSON Schema: Defines the structure, validation rules, and properties of the form.
• UI Schema: Configures input field behavior, including placeholders, widgets, and additional properties.
• Form Data: Stores user-submitted values in JSON format, which can be retrieved and processed.

Each component ensures flexibility and allows customization to fit different use cases.

Binding Data Options

The JSON Schema Form control supports both static and dynamic data binding. Static data binding involves pre-defined JSON structures, while dynamic data binding enables form updates based on real-time inputs or external data sources.

JSON Schema

The JSON Schema defines the expected structure and validation rules for the form. It determines how the form fields behave, what input types are expected, and which fields are mandatory. You can reffer here to know more about structuring of JSON Schema

Example Format:

{
  "title": "User Registration",
  "type": "object",
  "properties": {
    "firstName": {
      "type": "string",
      "title": "First Name"
    },
    "lastName": {
      "type": "string",
      "title": "Last Name"
    },
    "age": {
      "type": "number",
      "title": "Age",
      "minimum": 18
    },
    "email": {
      "type": "string",
      "format": "email",
      "title": "Email"
    }
  },
  "required": ["firstName", "email"]
}

UI Schema

The UI Schema defines additional functionalities such as placeholders, focus behaviors, and input field modifications. It enhances user experience by specifying how fields should be displayed and interacted with.

You can reffer here to know more about structuring of UI Schema

Example Format:

{
  "firstName": {
    "ui:placeholder": "Enter your first name"
  },
  "lastName": {
    "ui:placeholder": "Enter your last name"
  },
  "age": {
    "ui:widget": "updown"
  },
  "email": {
    "ui:emptyValue": ""
  }
}

Form Data

The Form Data represents the submitted values in JSON format. It holds the final output once the user interacts with and completes the form.

Example Format:

{
  "firstName": "John",
  "lastName": "Doe",
  "age": 30,
  "email": "john.doe@example.com"
}

Style

Provide your own CSS stylying for the JSON Form created. This broadens the UI customization for the personalized curated form control.

Add-ons

Add-on	Description
Tooltip	Displays additional information when users hover over form fields.
Description	Adds descriptive text beneath form fields for better clarity.
Label	Enables labels for specific fields to improve user experience.

CDN Add-ons for JSON Schema Form

These add-ons are not required but can be provided to extend the functionality of JSON Schema Form. Using CDNs in a JSON Schema Form control can be useful in specific scenarios, particularly when dealing with network restrictions, performance optimizations, or private networks.

You can input these links manually in the respective fields:

• React CDN – Provides core React functionalities for building UI components.
• React DOM CDN – Enables React to interact with the DOM for rendering UI elements.
• React JSONSchema Form CDN – Adds schema-based form handling for structured data input.
• AJV Bundle CDN – Offers high-performance JSON schema validation for form data consistency.

These can be used when additional React-based rendering is needed within JSON Schema Form. If client-side validation using AJV is required for better performance, or when a CDN-based integration is preferred over local package installations.

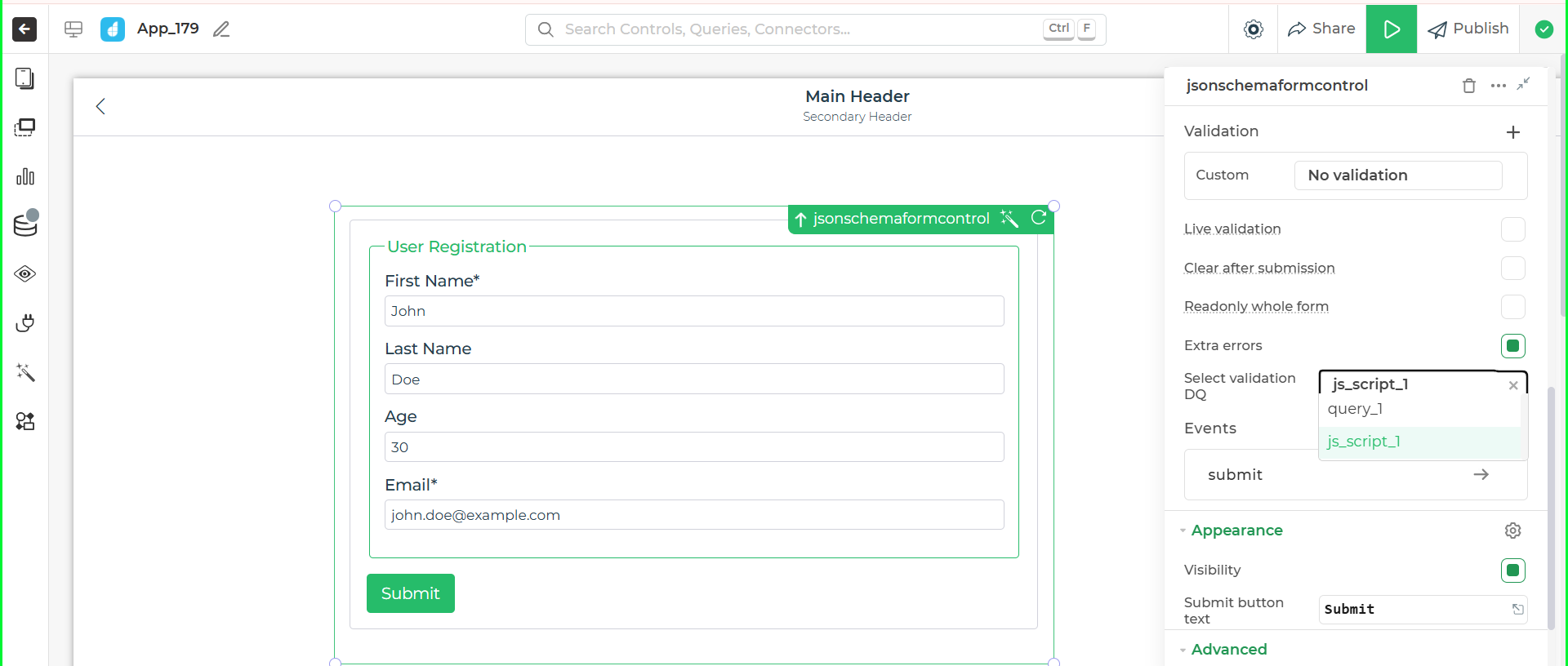

Interaction

Option	Details
Validation	Adds validation like Required to the control.
Live Validation	Validates form inputs in real time.
Clear After Submission	Resets the form fields after submission.
Readonly Whole Form	Makes the entire form non-editable.
Events	Supports Submit as the only event trigger.

Advanced Options

Option	Details
Disable Whole Form	Disables all input fields within the form.
Omit Extra Data	Ignores any additional data beyond the specified schema.
Disable Validation	Disables all the form validations.
Disable HTML5 Validation	Prevents browser-based validation.
Focus on First Error	Automatically moves focus to the first validation error.

caution

• The omit extra data setting requires live validation to be enabled.

• The disable validation setting requires both no validation and disable HTML5 validation.

Events

The JSON Schema Form control triggers events based on user interactions.

Event	Description
Submit	Triggers when the form is submitted or interacted with.

Appearance

• Visibility: Toggle visibility of the control.

Advanced Settings

• External CSS: Add custom styles to the Json Schema Form control.
• Trigger Dependents: Automatically invoke linked controls or workflows.
• Caching: Enable caching to store frequently used inputs.

Control Outputs

The JSON Schema Form control provides various outputs that can be used to retrieve form data and schema details.

Output	Description
{{jsonschemaformcontrol.form_data}}	Represents the complete form data after submission.
{{jsonschemaformcontrol.form_data.PROPERTIES_NAMES}}	Lists all property names available in the submitted form data.
{{jsonschemaformcontrol.json_schema}}	Lists all properties defined in the JSON schema. JSON schema will match for the provided information given to the control.
{{jsonschemaformcontrol.ui_schema}}	Lists all properties defined in the UI schema, including display settings. UI schema will match for the provided information given to the control.
