Scanner
The Scanner control in DronaHQ enables QR, barcode, and text scanning directly via the device camera—across web and mobile platforms. It’s built for cross-device support and works in Preview or web test mode, provided camera permissions are granted.

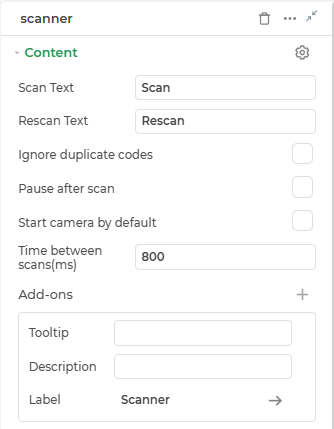

Content
| Setting | Description |
|---|---|
| Scan Text | Set the text to indicate scan. |
| Rescan Text | Set the text to re-attempt scan. |
| Ignore duplicate codes | Prevents duplicate scan entries from being processed. |
| Pause after scan | Stops further scanning after a successful scan until resumed. |
| Start camera by default | Automatically starts the camera when the scanning function is initialized. |
| Time between scans (ms) | Sets a delay (in milliseconds) between consecutive scans. |
Add-ons
| Add-on | Description |
|---|---|
| Tooltip | Allows you to display additional information or helpful hints. |
| Description | Adds descriptive text beneath to provide better context for users. |
| Label | Enables the addition of labeling of the control. |

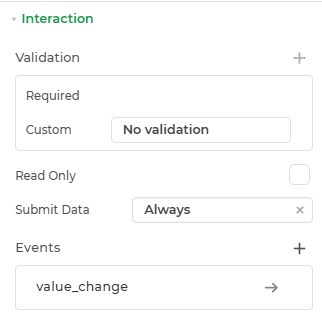

Interaction
| Option | Details |
|---|---|
| Validation | Add validation rules like required or more to the control. |
| Read Only | Makes the control non-editable. |
| Submit Data | Determines when data is submitted (Options: Always, Never, Not When Hidden). |
| Events | Lets you define logic or actions (like bindings or workflows) that should trigger based on user interaction. |
Event
| Trigger | Description |
|---|---|
| value_change | Occurs upon modification in the value of the respective control. |

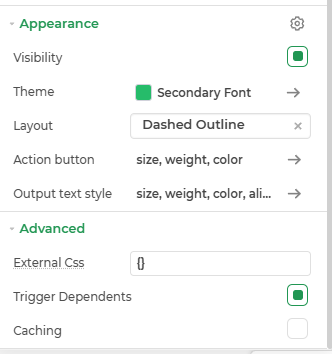

Appearance
- Visibility – Controls whether the element is shown or hidden in the interface.
- Theme – Defines the overall appearance, including colors and styles, to match the design system.
- Layout – Determines the border around the element for visual distinction.
- Action Button – Adjusts the button’s dimensions, text thickness, and color to match UI preferences.
- Output Text Style – Defines the appearance of displayed text. Controls the font size, boldness, color, and alignment of the output text.
Advanced Settings
- External CSS: Add custom styles to the Scanner control.
- Trigger Dependents: Automatically invoke linked controls or workflows.
- Caching: Enable caching to store frequently used inputs.
Control Output
| Output | Description |
|---|---|
| {{scanner}} | It provides the output of the control in string type. |
